The Boeing C-17 Globemaster III is one of those aircraft that looks impressive just sitting on the ramp. On paper, it is one of the largest aircraft ever built to operate from short runways routinely. Yet, what continues to surprise even seasoned aviation enthusiasts is how little runway this giant requires to operate and how agile it appears while flying tactical profiles.

What makes the C-17 remarkable is not that it can land on short runways; plenty of military transports can do that. It can do so while carrying loads that would overwhelm smaller tactical aircraft, and while weighing far more than aircraft traditionally associated with rough-field operations. When viewed alongside platforms like the Lockheed C-130 Hercules, the Airbus A400M, the Ilyushin Il-76 , or even the much larger Lockheed C-5, the Boeing C-17 occupies a middle ground between tactical and strategic airlift and is widely regarded by military operators as one of the most successful designs combining those roles.

This article breaks down why the C-17 is capable of such extreme short-field performance for its size, and how its design reflects a very deliberate attempt to merge strategic lift capacity with tactical flexibility, something few airlifters have managed without major compromises.

A Requirement That Sat Between Tactical And Strategic Airlift

The C-17 Globemaster III was born out of a very specific problem the US Air Force faced in the late Cold War era. By the early 1980s, it was clear that the existing airlift fleet was split into two extremes, with very little overlap between them. On one end sat the Lockheed C-130 Hercules, a superb tactical transport that could get into short, rough, and unimproved runways, but was limited in how much it could carry and how far it could go. On the other end was the Lockheed C-5 Galaxy, a true strategic airlifter capable of moving enormous payloads across continents, but heavily dependent on long, well-prepared runways and extensive ground infrastructure.

What the Air Force lacked was an aircraft that could combine a meaningful strategic payload with tactical access. The C-17 was designed specifically to fill in that gap.

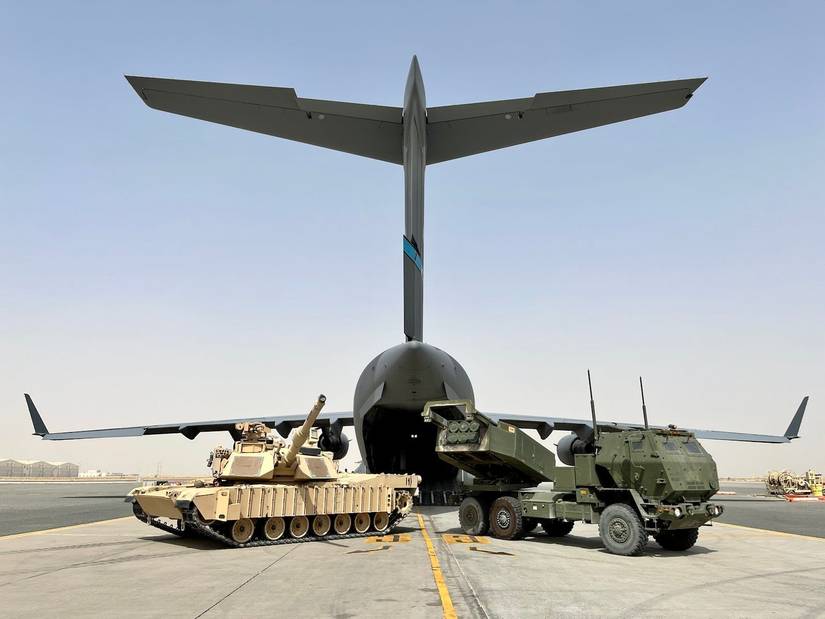

Unlike the C-5, the Globemaster was intended to land close to the combat area. It needed to operate from short, austere, and sometimes damaged runways while carrying cargo that would normally require a much larger aircraft — armored vehicles, artillery systems, helicopters, and oversized pallets that the C-130 simply could not handle. At the same time, it still had to retain enough range and payload capacity to function as a strategic asset when required.

Meeting those requirements meant the C-17 had to do something fundamentally unusual: perform assault-style landings traditionally associated with smaller tactical transports, but at weights far closer to those of strategic airlifters. This was not an incremental improvement over existing designs; it was a shift in how large airlift aircraft were expected to operate.

As a result, the C-17’s design priorities were different from the outset. Efficiency, cruise optimization, and fuel burn were not the primary drivers. Instead, the airframe, landing gear, braking system, and flight controls were all engineered around controllability, predictability, and robustness in harsh environments. The assumption was that ideal runways would often not exist — and that the aircraft would still be expected to land anyway. Consequently, the C-17 can operate on runways just over 3,500 feet long, even when carrying tens of tons of cargo.

High-Lift Wing And Advanced Flap System

One of the main reasons the C-17 can operate effectively on short runways is its wing design. The aircraft features a supercritical wing optimized for both cruise efficiency and low-speed handling, along with a sophisticated high-lift system. Large, multi-slotted flaps extend deep into the airstream, significantly increasing lift during takeoff and landing.

These flaps allow the C-17 to perform steep approaches at relatively low speeds, even at a maximum takeoff weight of up to 585,000 pounds. Lower approach speeds result in shorter landing distances since less kinetic energy needs to be dissipated after touchdown. In its class, only the Airbus A400M rivals the C-17 in low-speed wing efficiency, but it does so at a significantly lower maximum weight. The real achievement is the C-17’s ability to produce comparable lift at much higher weights.

Beyond its hardware, the fly-by-wire flight control system is essential. The aircraft’s onboard computers automatically adjust control surface movements during low-speed flight, maintaining stability even at high angles of attack. This enables pilots to make precise approaches into short runways without fighting the aircraft, lowering workload and improving safety margins.

One of the most striking features of the C-17 is its use of reverse thrust during landing — and for good reason. On many large transports, reverse thrust is a supplementary aid, but on the C-17, it is a vital part of the aircraft’s stopping strategy.

The C-17’s PW2040-series (F117-PW-100) engines are equipped with full thrust reversers that are a central element of its landing deceleration strategy, reducing brake energy and runway distance.

The main purpose of reverse thrust is, of course, to stop quickly, but it serves additional functions as well. Reverse thrust also helps reduce brake wear and heat buildup, which are especially important when operating in hot, high-altitude environments or during repeated missions into short strips. This is one reason why the C-17 can sustain high-tempo operations where other large jets would quickly reach maintenance limits.

By deploying idle reverse thrust in flight, the aircraft can significantly increase drag without gaining too much airspeed, enabling descent rates of up to 15,000 feet per minute (about 4,600 meters per minute). This results in a vertical descent rate of just over 170 mph (274 km/h) — a remarkable figure for an aircraft of this size. It’s worth noting that the C-17 is not entirely unique in this regard; the C-5 Galaxy also has limited in-flight reverse thrust capability. However, it is restricted to inboard engines only and is used more cautiously.

In the case of the C-5, reverse thrust in flight is mainly an auxiliary aid rather than a regularly employed tactical feature. The C-17’s ability to deploy reverse thrust on all four engines offers a level of control and symmetry that the larger Galaxy cannot match, especially during steep, high-drag descents.

Fly-By-Wire And Pilot-Aided Precision

The C-17’s fly-by-wire system is central to its short-field performance. Unlike traditional mechanical controls, fly-by-wire allows engineers to tailor how the aircraft responds in different phases of flight. During approach and landing, the system prioritizes stability, precise control, and predictable handling at low speeds.

One standout feature is the aircraft’s ability to fly steep , stabilized approaches into confined areas. The flight control laws help prevent over-rotation or excessive sink rates, even when pilots are pushing the envelope. This allows landing on runways surrounded by obstacles, terrain, or hostile environments without compromising safety.

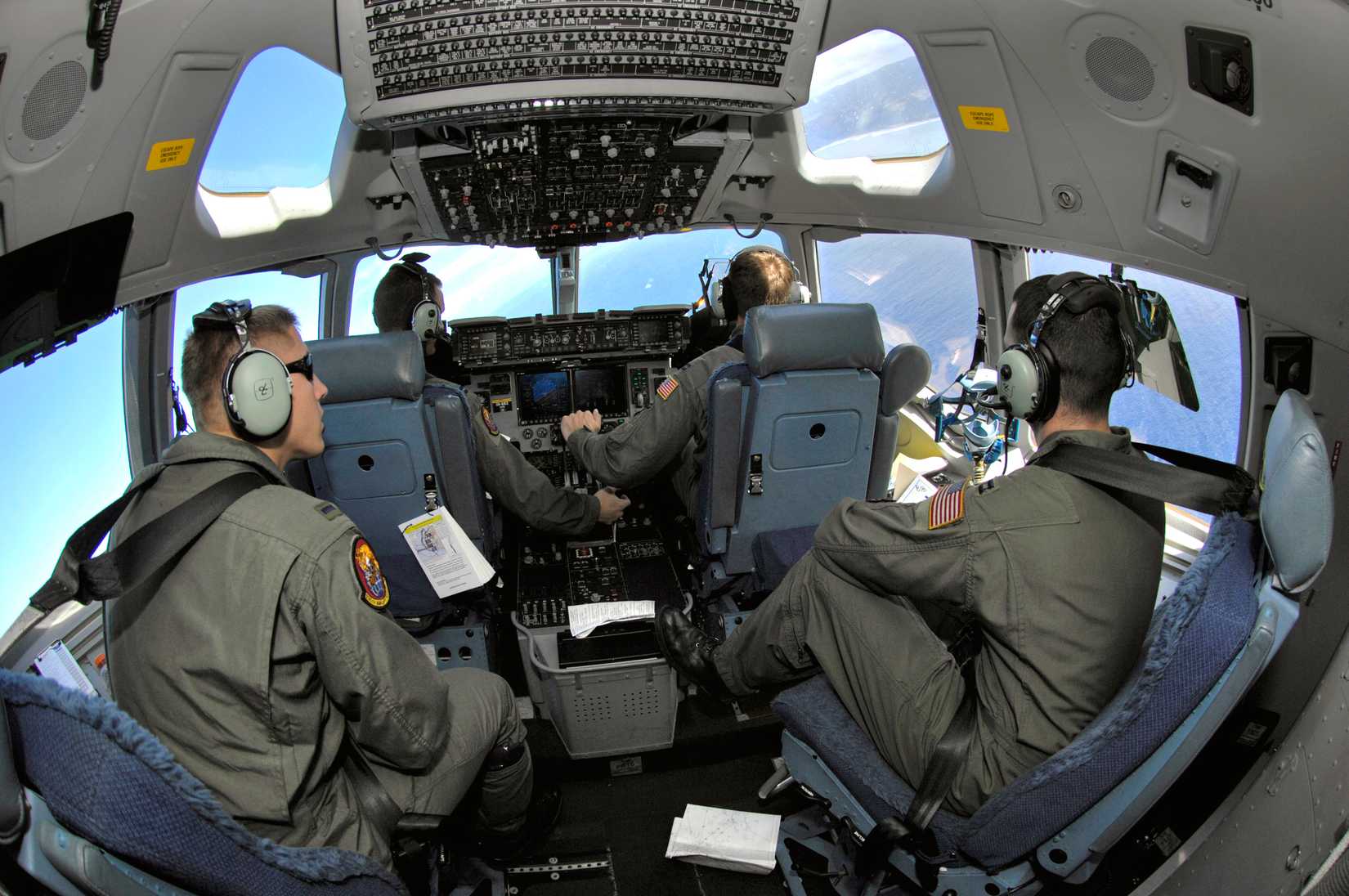

The human factor is equally important. C-17 pilots undergo extensive training focused specifically on short-field and assault landings. These procedures are practiced regularly, ensuring crews are comfortable flying profiles that would be considered abnormal or unsafe in commercial aviation. The combination of advanced systems and highly trained crews turns the aircraft’s raw capability into reliable operational performance.

Spoilers, Brakes, And Weight Management On The Ground

Stopping a heavy aircraft quickly involves more than just thrust reversers. The C-17’s ground systems are engineered to transfer as much weight as possible to the landing gear immediately upon touchdown.

Full-span spoilers deploy swiftly, releasing lift and preventing the aircraft from “floating” after landing. That ground handling philosophy even extends to unusual design features elsewhere on the aircraft. As Simple Flying has previously explored in detail, the C-17’s unusual structural asymmetry reflects how closely the airframe was tailored around operational and mechanical realities rather than textbook symmetry.

Once firmly on the ground, the multi-wheel landing gear distributes the aircraft’s weight across a wide footprint, while a braking system designed to tolerate repeated high-energy stops allows pilots to brake aggressively without exceeding structural limits. Anti-skid systems further optimize braking performance on uneven, wet, or contaminated surfaces, reducing the risk of tire damage or loss of directional control — an essential capability when operating from short runways with little margin for error.

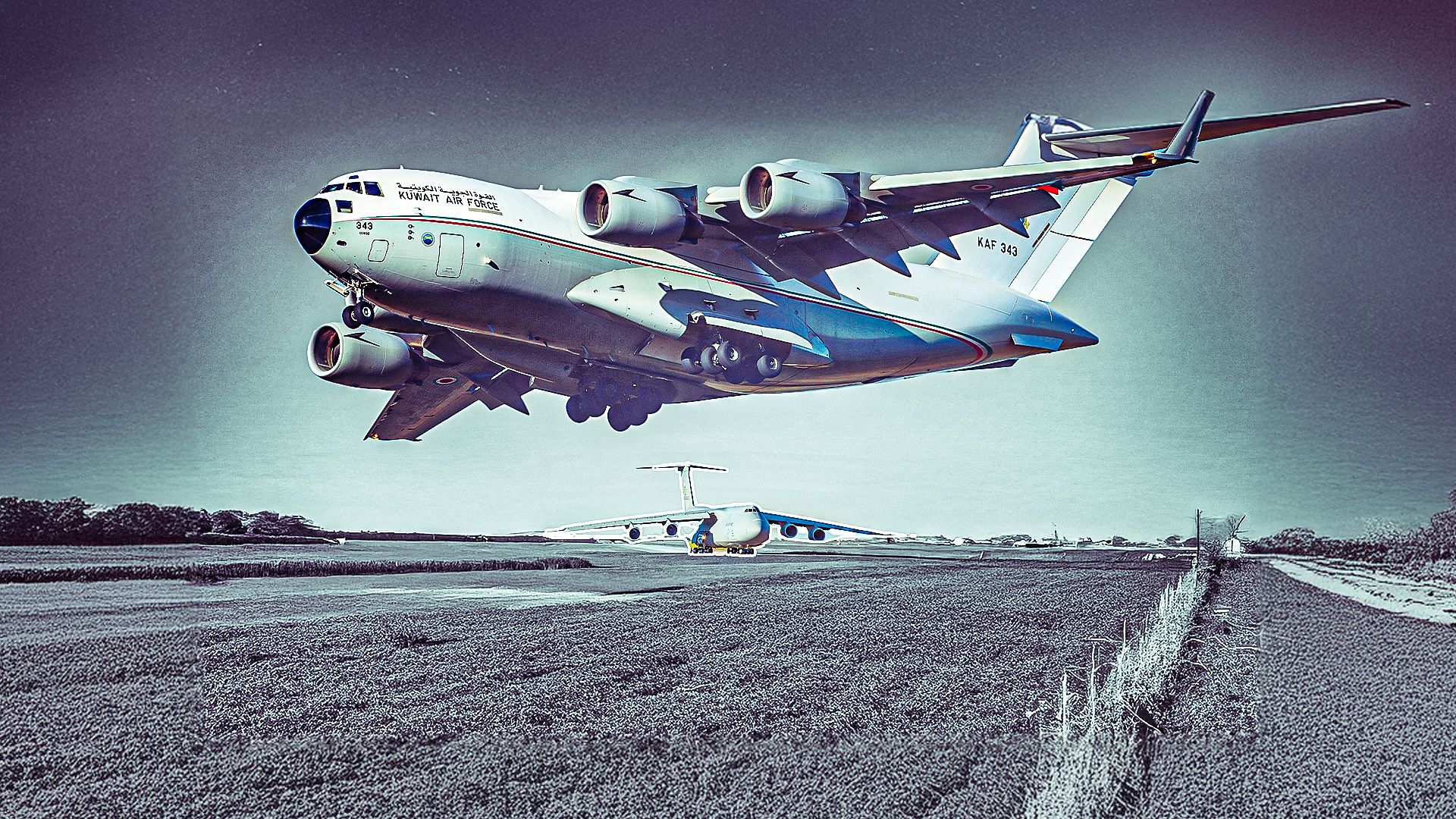

When compared to the C-5 Galaxy, the difference is obvious. Although the Galaxy can achieve remarkable feats, it was never designed to withstand this kind of punishment repeatedly. The C-17, however, was built with the idea that short, demanding landings would be typical rather than extraordinary.

Why This Matters In Real-World Operations

The C-17’s outstanding short-field performance holds significant strategic value. It naturally stems from a design that prioritized short-runway capability as a core requirement rather than an optional feature. Being able to land a large jet near the point of need reduces dependence on long supply chains, secondary airlifts, or vulnerable ground convoys. In humanitarian missions, this means delivering aid directly to disaster zones with damaged infrastructure.

By combining tactical handling with strategic payload capacity, Boeing and the US Air Force created an aircraft that transformed how airlift operations are conducted. Even today, few transports can match the C-17’s ability to deliver heavy cargo directly where it’s needed without relying on long runways or extensive infrastructure.

Looking ahead, newer airlifters like the A400M may push the limits of short-field performance even further, but the C-17 has already set a benchmark that’s hard to surpass. Its design shows what’s possible when operational needs guide engineering decisions — and why, for its size, the Globemaster’s short-field capability still seems almost incredible.
