If you look at aircraft at a busy airport, you’ll notice that most modern narrowbody jets have wingtips that point upward. These include the “Sharklets” on the Airbus A320neo and the “Advanced Technology Winglets” on the Boeing 737 MAX. These features make it easy to spot a fuel-efficient plane. The Boeing 757 stands out, though. Depending on the airline, you might see one 757 with flat wingtips and another with tall blended winglets that reach almost as high as a person.

This difference makes many aviation fans ask: if winglets are so helpful, why didn’t Boeing put them on the 757 from the beginning? It’s not because Boeing ignored efficiency. The 757 was built in a different era, and its supercritical wing was already advanced. At that time, fuel was cheap, so small savings didn’t matter much, and early winglet designs were costly to add. Only decades later, when fuel prices went up, and airlines started flying the 757 on longer routes, did blended winglets become a smart upgrade. To understand why most 757s have winglets now, we need to look at the technology of the late 1970s, the plane’s original performance, and the market changes that made winglets a good investment.

The 757 Was Born Before Blended Winglets Existed

The main reason the Boeing 757 didn’t have blended winglets at first was timing. When Boeing designed the plane in the late 1970s, blended winglets like the ones we see today weren’t proven or available for large commercial jets. The 757 first flew in February 1982 and entered service in 1983, when most wingtip research focused on more angular “canted” winglets, like those later used on the B Boeing 747-400. Boeing’s engineers wanted to get a new narrowbody replacement for the 727 into service quickly, so they avoided untested tip devices that would have added cost, risk, and extra certification work.

Blended winglets, which have a smooth, curved shape from wing to tip, only became a practical upgrade for the 757 many years later. Aviation Partners Boeing (APB) didn’t get regulatory approval for Boeing 757-200 blended winglets until the mid-2000s, about a year after Boeing had already stopped making the 757. By then, the plane’s design was over twenty years old, and winglets were sold as an upgrade kit instead of being built in from the start.

​

Boeing also didn’t see much need for winglets when developing the 757. The plane was designed as a “hot and high” specialist with a strong thrust-to-weight ratio that pilots still praise. It could easily operate from short runways and high-altitude airports like Denver and Mexico City, even in tough conditions. With low fuel prices and powerful engines, the small efficiency gains from early winglet designs didn’t seem worth the extra weight, structural changes, and certification work. For Boeing at the time, the 757 already did its job well without winglets.

How The 757’s Supercritical Wing Saved Fuel Without Winglets

Not having winglets didn’t mean the 757 was behind the times. In fact, it had one of the most advanced wings of its era. Boeing gave the 757 a supercritical wing of about 2,000 square feet (185 m²), shaped to keep airflow smooth over the top and delay shock waves. Simply put, this wing was built to cruise at high speeds with less drag, lower fuel use, and more comfort for passengers.

That wing quietly did much of what we now expect from winglets. The original 757-200 could already fly about 3,700 nautical miles with a typical passenger load, enough for most US transcontinental and many North Atlantic routes. When blended winglets were added years later, the range only increased by a few hundred nautical miles to about 3,900, a helpful gain, but not a huge change. For Boeing in the early 1980s, the 757’s wing already offered strong climb, high lift, and efficient cruising without extra hardware on the tips.

That built-in performance also came with some trade-offs. Adding winglets in the 1980s would have required reinforcing the wing to handle extra bending and twisting at the tip, which would add weight, complexity, and more certification work. On the routes the 757 was designed for busy medium- and long-haul flights, not extreme-range missions, the extra weight would have reduced most of the possible fuel savings. Simply put, Boeing had already invested in an efficient wing, so adding winglets didn’t make business sense at the time.​

Why Airlines Added Them Decades Later

If the 757 worked so well without winglets, why did airlines later spend millions to add them? The main reason wasn’t aerodynamics; it was economics. From 2004 to 2008, airline fuel prices went up quickly. In that situation, even a small improvement in fuel use became important. Aviation Partners Boeing’s offer of about five percent fuel savings was no longer just a bonus; it helped airlines keep profits up on fuel-thirsty narrowbody jets that were still doing a good job.

The retrofit program that started in 2005 gave the 757 a new lease on life. Adding eight-foot-tall blended winglets helped airlines save fuel and fly farther. The extra range of a few hundred nautical miles opened up new routes.

Airlines like Continental (now part of United) and United used winglet-equipped 757-200s to fly from Newark to smaller European cities like Lisbon and Porto. These “long and thin” routes didn’t have enough demand for a big plane like the 777, but a 757 with winglets could handle them easily.

Why Ground Clearance Limits Split Scimitar Designs

Plane spotters often ask why the 757 doesn’t have the dramatic “Split Scimitar” winglets seen on many 737 Next Generation and MAX jets, which have a downward-angled tip below the main vertical part. One main reason is ground clearance. The 737 sits low on its landing gear, which is why its engines have a flat bottom. The 757 stands higher, but not high enough for a full split-scimitar winglet to stay safely above ground equipment and service vehicles.

There’s also a structural and cost issue. A split scimitar winglet adds extra twisting forces at the wingtip. For older 757s, strengthening the wing to handle this would have been costly compared to how much longer the aircraft would fly. For many airlines, the extra savings didn’t make up for the extra cost.

Instead, some airlines like United Airlines and Icelandair chose a refined “scimitar blended winglet” for their 757-200s. This is an improved version of the original blended winglet, with a reshaped upper tip that adds about one percent more fuel efficiency. It gives a helpful performance boost without needing a downward tip that would cause ground clearance and structural problems.

A Versatile Passenger And Cargo Plane

Even though Boeing stopped making the 757 in 2004, it’s still an important part of many airline fleets. Recent data shows the 757 still fills certain roles that newer aircraft haven’t fully taken over. Delta Air Lines is still the biggest passenger operator of the 757, with about one hundred aircraft across the -200 and -300 models.

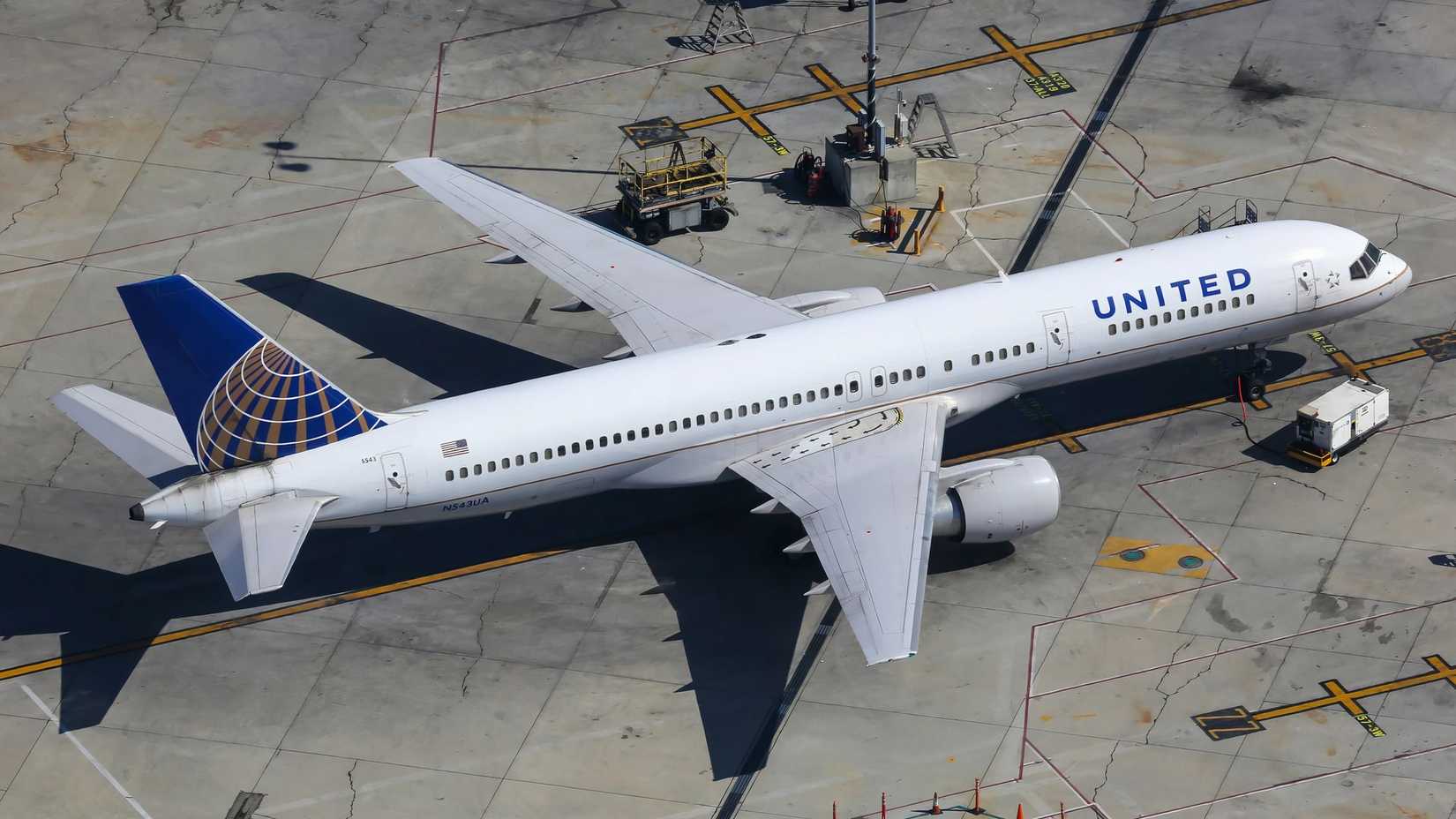

They use the 757 on busy domestic routes and some long-haul flights where its performance and size are ideal. United Airlines also uses winglet-equipped 757-200s for premium cross-country flights and some East Coast to Europe routes, where a narrowbody jet with strong performance works well.

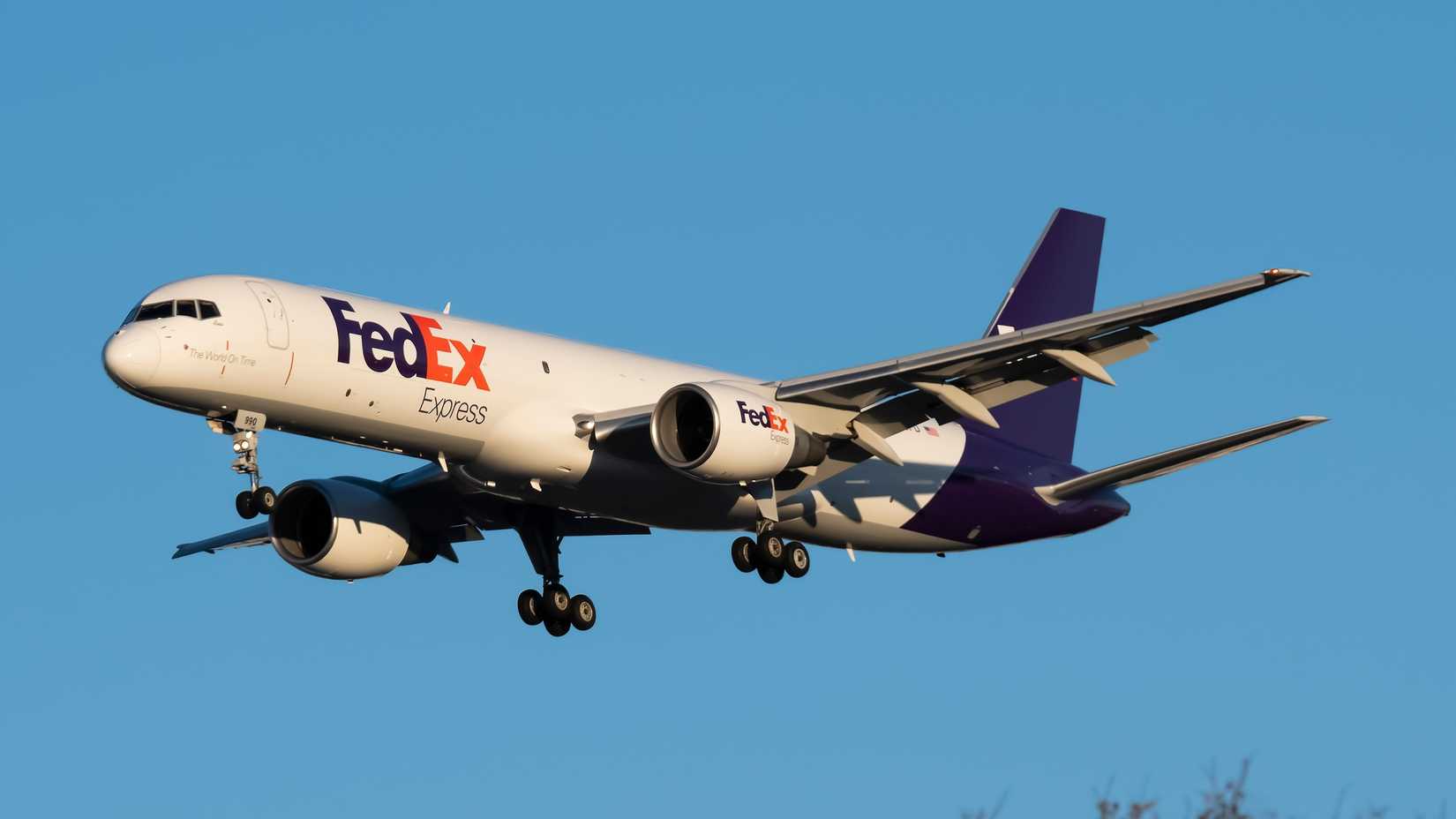

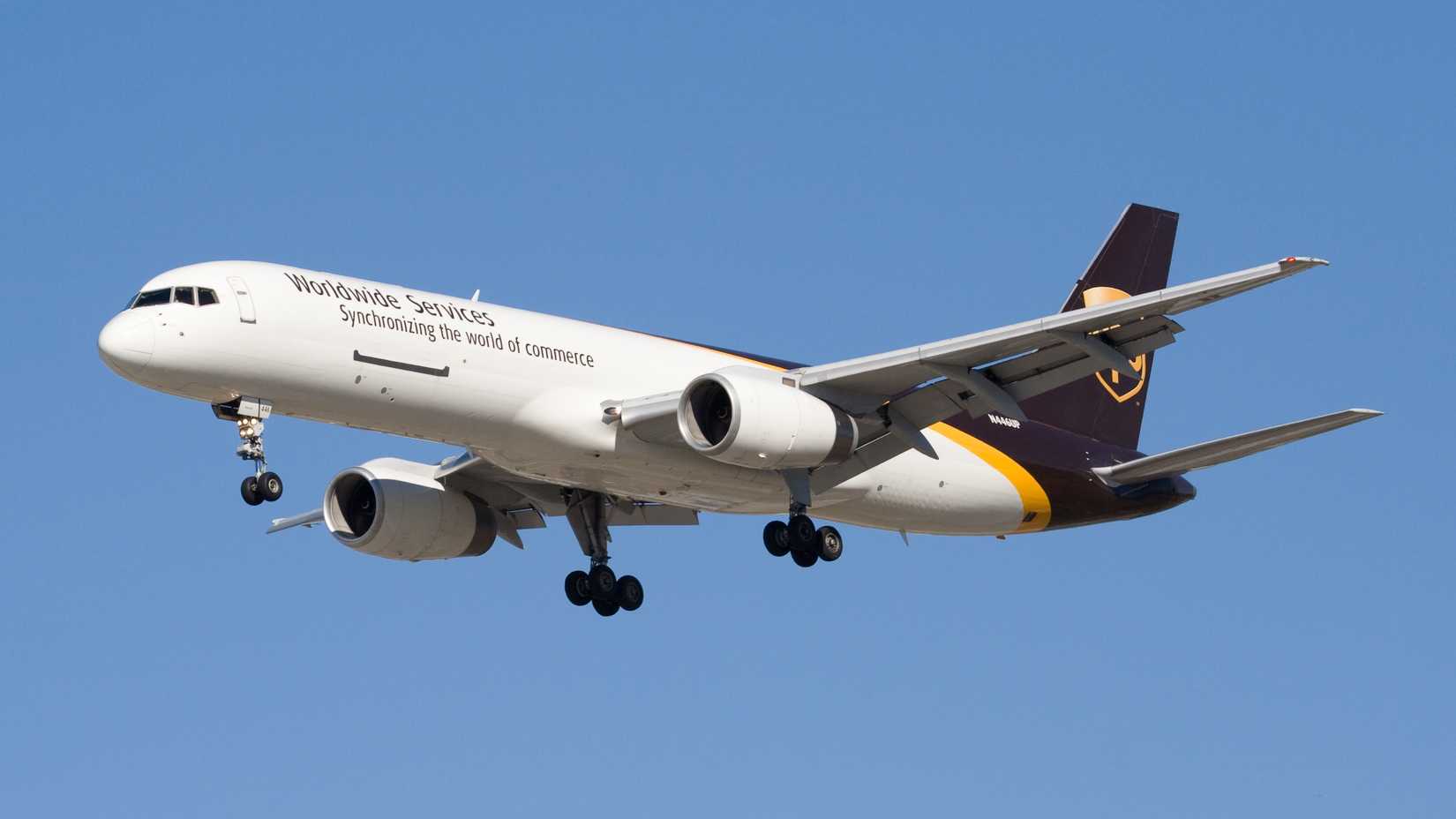

The 757 has become especially valuable in the cargo market. Companies like FedEx Express, UPS Airlines, and SF Airlines in China use it as a main medium-lift freighter. The 757’s mix of payload, range, and runway performance makes it very flexible; it can carry a lot of freight but still take off from shorter or more limited airports where bigger aircraft might have trouble.

Winglets Have Prolonged 757’s Service Life

The story of the Boeing 757 and its winglets isn’t about fixing a mistake. It’s about how a strong design adapted as the world changed. Boeing didn’t add blended winglets at first because, for its original purpose and fuel costs, the 757 already met its goals with an efficient wing and powerful engines.

As fuel prices went up and airlines changed their routes, the 757’s design was flexible enough to take advantage of new technology. Blended winglets became the perfect upgrade, cutting fuel use, increasing range, and opening new routes just as the 757 might have started to disappear.

Today, newer aircraft like the Airbus A321neo and Boeing 737 MAX are slowly replacing the 757 on many routes. Still, the 757 with winglets fills a unique role that airlines and cargo companies don’t want to lose. The tall winglets you see aren’t just an add-on; they show how a well-designed jet can keep working long after production has ended.

​
